Root Cause Analysis

The crash is caused by a buffer overflow in HAL_SPI_TxRxCpltCallback. An MMIO-derived 16-bit length value (0xc915 = 51477 bytes) read from the SPI FIFO data register at 0x40003c30 is stored at address 0x24001800. This length is subsequently used in a memcpy call that copies data to a destination buffer starting at 0x24002000. The excessive length causes the copy to extend to 0x2400E915, overwriting adjacent memory including the SPI handle structure at 0x24006908. The SPI handle's Instance pointer (first field at offset 0) is corrupted with zero.

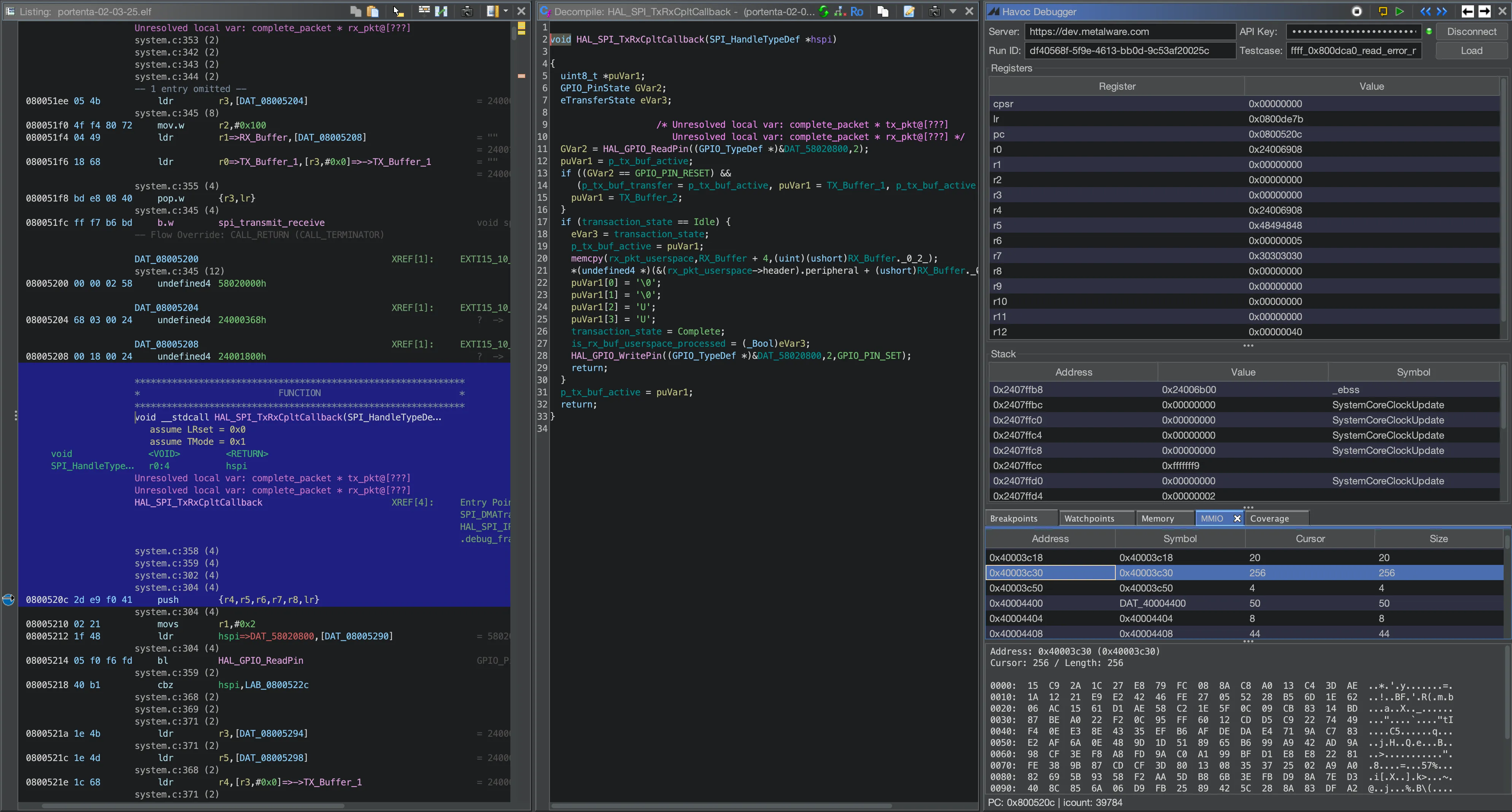

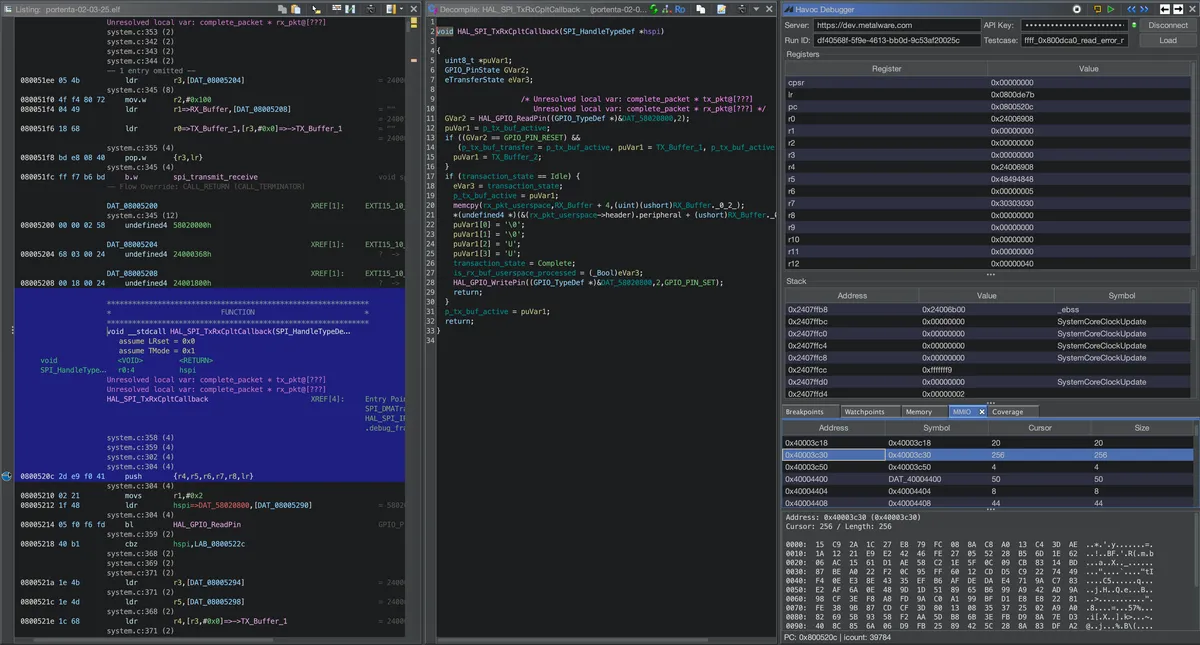

void HAL_SPI_TxRxCpltCallback(...) { // 0x8005204
    ...
    uint16_t len = *(uint16_t*)0x24001800;  // len = 0xc915, MMIO-derived value from SPI FIFO
    void *dst = *(void**)0x24000370;        // dst = 0x24002000
    void *src = 0x24001804;
    memcpy(dst, src, len);                  // Overwrites SPI handle at 0x24006908
    ...
}

When HAL_SPI_Abort is later called, it reads the corrupted Instance pointer (now NULL) from the SPI handle at 0x24006908 and attempts to dereference it at 0x800dca0, causing the null pointer access failure.

Stack Trace

0x0800fe26  LoopFillZerobss+0xc
0x080028bc  main+0x2c
0x080051ee  EXTI15_10_IRQHandler+0x1e
0x0800dca0  HAL_SPI_Abort+0x30
